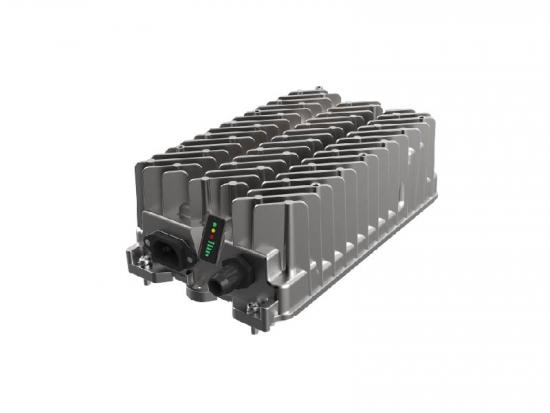

PLK380, the 24V/20A model is developed as an industrial-grade charger with outstanding performance on flexibility, reliability, efficiency and after-service.
With a sealed aluminum die-cast design, it can prevent water, dust, shock and impact. Especially excellent for your cleaning machines such as auto floor scrubber machines, floor sweeper machines and other commercial cleaning equipment.
Besides, it's available for charging various types of batteries including WET, AGM, GEL and Li-ion and you can switch to the required charging curve in our integration APP. To manage the battery, you can also check the device info, charging status, warning and fault info and key historical charging data in our digital system.
| Technical Specification |
|
AC Input |
|
|
Input Voltage Range |
85-265Vac |
| (<110VAC Derated Output) | |
| Nominal Voltage Frequency | 50/60Hz |
| Operating Voltage Frequency | 45-65Hz |
| Maximum Input Current | <5A |
| Peak Efficiency | >92% |
| 110Vac Efficiency | >88.5% |
| Protection | Current limiting, over voltage, under voltage, surge |
| DC Output | |
| Power | 380-425W |
| Nominal Voltage | 24VDC |
| Maximum Current | 20A |
| Start-up Voltage | 2VDC |
| Battery Type | Lead-acid(WET/AGM/GEL), Li-ion, Cutomized |
| Protection | Current limiting, low pressure, high pressure, reverse connection |
| Structure Specification | |
| IP Grade | IP66, NEMA4 |
| Working Temperature | -25℃ to 60℃ （-13°F to 140°F） |
| Storage Temperature |
-40℃ to 85℃ （-40°F to 185°F） |
| Dimension | 249*142*79.5mm |
|
Weight |
2.62Kg |
| Cooling | Natural Cooling (No Fans) |
| Key Features |
High Versatility and Efficiency Robust Structure Design
· Support global any single power grid operation. · IP66 protection level, antivibration, waterproof and dustproof.
· Save energy consumption. · Simple installation based on various demands.
· Reduce power grid pollution. · Efficient heat dissipation.
Flexible to Adjust and Manage Integrated Maintenance System
· Support customized CAN communication services · Detailed power display, help customers check
and open protocol. charging status.
· Provide online upgrade service. · Abundent fault display and history data, help
· Easy switch among various batteries and brands customers to locate most of the fault.
including GEL, AGM, WET and Lithium.
| Application Scenarios |
Cleaning Equipment: Floor scrubber machines, floor sweeper machines and other cleaning commercial electric cleaning tools
