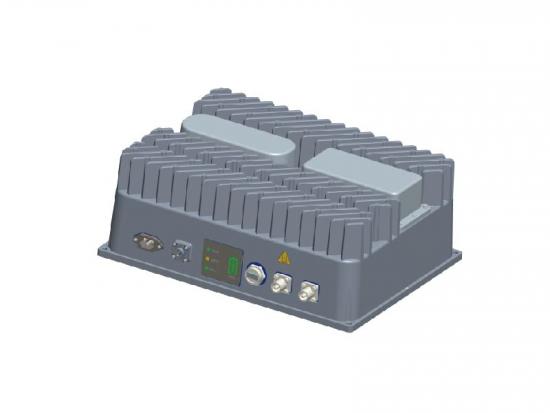

This bidirectional charger enables onboard charging from AC to DC power and mobile power supply from DC to AC simultaneously on the same device with a compact, durable and integrated design.
This design not only expands the function of the original cleaning equipment, warehousing logistics and other electric equipment, but also expands business opportunities and improves energy efficiency.
Technical Specification |
AC to DC Direction |
||
OUTPUT |
Rated Voltage |
36V |
Battery Voltage Range |
32 ~ 43.8V | |
Maximum Charging Current |
85A | |
Rated Power | 3.3KW | |
Battery Type | Li-ion/AGM/GEL/WET | |
INPUT |
AC Voltage Range |
180 ~ 264VAC |
Frequency Range |
45 ~ 65Hz | |
AC Current | 16A | |
Efficiency | 93% | |
THD | <5% | |
DC to AC Direction |
||
INPUT |
Rated Input Power | 3.3KW |
Full Power Voltage Range | 36 ~ 43.8V | |
Max Input Current | 80A | |
OUTPUT |
Rated Output Power | 3KW |
Voltage Range | 180 ~ 264VAC Determined by AC Main | |
AC Current | 13A | |
Frequency Range |
45 ~ 55Hz |
|
Efficiency | 93% | |
THD |
<5% | |
Structure and System |
||
All Models |
IP Grade | IP65 |
Working Temperature | -20℃ to 45℃ (-4°F to 122°F) | |
Communication Port | 2*RS485, CAN, WIFI | |
Dimension | 429*330*162mm | |
Cooling | Natural Cooling (No Fans) |
